Extended Inner Ring Spherical Roller Bearings: When Are They the Right Choice?

Industrial operators often face a difficult balancing act. You need heavy-load capacity and misalignment tolerance for demanding applications. However, you also require practical installation methods on the factory floor. Standard spherical roller bearings typically demand precision-machined shafts. They rely on complex adapter sleeves or highly restrictive press fits. These strict dimensional requirements drastically complicate field installation and subsequent maintenance.

The extended inner ring spherical roller bearing inherently changes this dynamic. It simplifies mounting procedures by accepting commercial-grade slip-fit shafting. You bypass the need for specialized hydraulic tools and extensive shaft preparations. This configuration offers a clear operational advantage for many industrial facilities.

This article objectively evaluates application suitability across different operating environments. We will explore specific locking mechanisms and analyze their unique holding characteristics. You will understand the crucial performance trade-offs when specifying extended inner ring designs over standard, concentrically mounted configurations.

Key Takeaways

• Extended inner ring designs eliminate the need for adapter sleeves or heavy interference fits, significantly reducing installation time and shaft preparation costs.

• They are optimized for commercial-grade (slip-fit) shafting, making them a primary choice for material handling, HVAC, and conveyor systems.

• Specifying a bearing with set screw or eccentric lock mechanisms introduces different holding characteristics and shaft-wear risks under high vibration.

• While installation is simplified, extended inner rings typically have lower maximum speed ratings and carry risks of fretting corrosion if misapplied in high-shock applications.

Defining the Core Mechanical Advantage of the Extended Inner Ring Bearing

Engineering teams frequently grapple with severe downtime constraints. Bearing replacement traditionally requires specialized tooling, heat induction, and precise measurements. These requirements inflate labor hours. Every hour spent swapping a seized standard bearing compounds lost production revenue. You need simpler alternatives when rapid return-to-service is the priority.

This is where the shafting factor becomes critical. Standard interference fits mandate highly precise machining. Technicians must use heating equipment or hydraulic nuts to mount them correctly. In contrast, an extended inner ring bearing operates seamlessly on commercial-grade shafting. You can utilize standard Turned, Ground, and Polished (TG&P) shafts. These slip-fit tolerances allow technicians to slide the component directly into place by hand.

Importantly, the internal geometry does not change. The core rolling elements and raceway curvatures remain identical to standard designs. They still accommodate initial static misalignment flawlessly. They also absorb dynamic shaft deflection during heavy operation. You retain the fundamental mechanical benefits of a spherical roller profile while modifying only the external mounting interface.

The primary advantage stems from component reduction. Extending the inner ring on one or both sides provides additional surface area. This extra length creates an integrated platform for direct-to-shaft locking mechanisms. You effectively eliminate external locknuts, locking washers, and tapered adapter sleeves. Fewer discrete components mean fewer potential points of failure during installation.

Locking Mechanisms Evaluated: Bearing With Set Screw or Eccentric Lock

Choosing the right locking mechanism dictates the long-term reliability of your slip-fit installation. You must match the holding method to the specific directional forces present in your application. A bearing with set screw or eccentric lock provides distinct advantages, but each carries specific operational risks.

Set Screw Locking Design

The set screw mechanism relies on direct mechanical penetration. Two screws sit in the extended ring, typically spaced 60 to 120 degrees apart. Technicians tighten them until they bite directly into the shaft material. This creates a highly secure, mechanical interference point.

• Ideal Use Case: You should deploy this method for reversing loads and moderate speeds. It performs exceptionally well in environments where axial space is highly restricted. The dual screws prevent rotational slip effectively in both directions.

• Risk Factor: Set screws inherently cause shaft marring. The hardened screw tips create raised burrs on the softer shaft material. This localized damage makes subsequent component removal notoriously difficult. Technicians often struggle to slide the damaged shaft through the tight internal clearances.

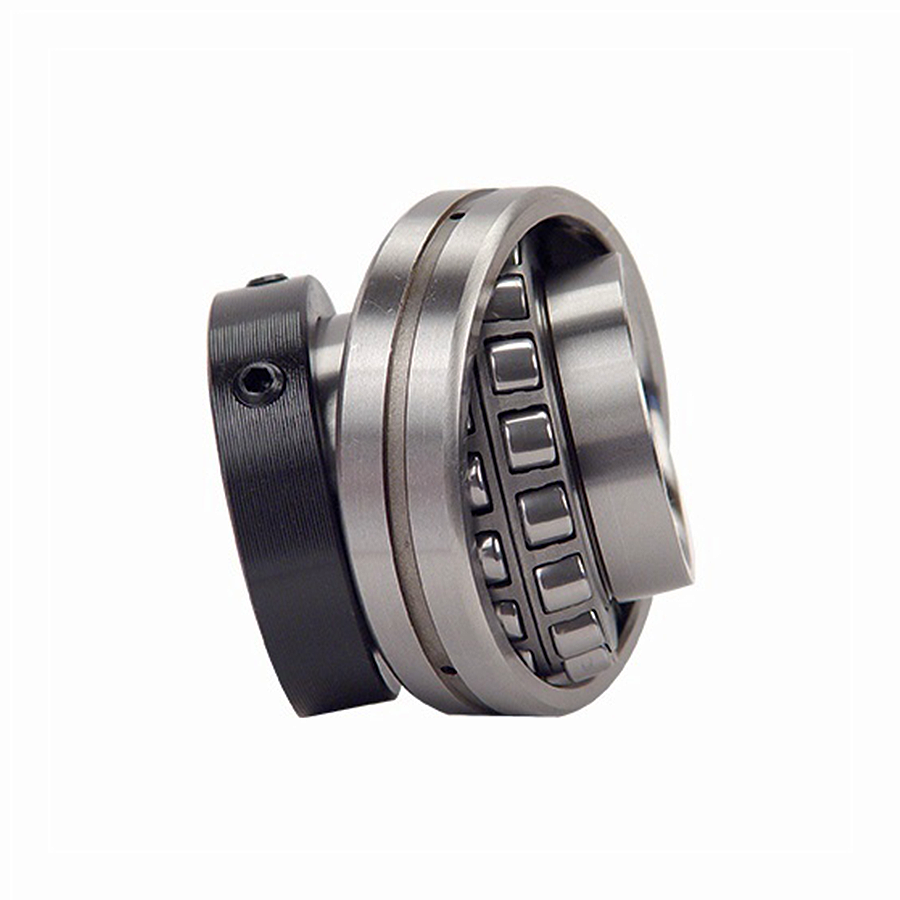

Eccentric Locking Collar Design

An eccentric locking collar utilizes a completely different gripping philosophy. It features a machined collar that engages with an offset, eccentric cam on the extended inner ring. As you rotate the collar in the direction of shaft travel, the eccentric profiles bind together. This binding action grips the shaft uniformly.

• Ideal Use Case: This collar excels in unidirectional rotation scenarios. Applications demanding consistent speeds benefit from its secure gripping force. It clamps firmly without causing severe, localized shaft damage.

• Risk Factor: The collar relies entirely on rotational inertia to maintain its grip. It can easily loosen if your machine experiences frequent sudden stops. Reversing loads will instantly unlock the collar. Furthermore, severe low-frequency vibration can disrupt the clamping force over time.

Specifying the Spherical Roller Bearing for Mounted Units

Extended rings form the mechanical backbone of high-capacity mounted solutions. When you examine heavy-duty pillow blocks, flange blocks, and take-up units, you almost always find extended ring geometries inside. A spherical roller bearing for mounted units relies on this elongation to bridge the gap between internal precision and external housing ruggedness.

Consider the harsh realities of industrial sealing and lubrication. Standard flush-face designs offer very little real estate for complex seal arrangements. The extended ring solves this problem. It provides an ideal, wide land for heavy-duty contact seals. These labyrinth or triple-lip seals ride directly on the extended ring surface. They create an impenetrable barrier against severe environmental contamination. This protection is indispensable in aggregate, mining, and agricultural applications where abrasive dust is constant.

Housing alignment presents another massive challenge in heavy industry. Fabricated steel structures rarely offer perfect dimensional accuracy. Welded frames warp, and mounting bases shift. The mounted unit compensates for this seamlessly. The spherical outer diameter of the internal insert mates perfectly with the concave bore of the cast iron housing. This design corrects initial mounting errors automatically. You achieve proper alignment without resorting to complex shimming procedures on the factory floor.

Implementation Risks and Performance Limitations

Convenience always introduces trade-offs in mechanical engineering. Slip-fit installations bypass the rigid security of interference fits. This looser tolerance introduces specific operational vulnerabilities. You must evaluate these limitations before finalizing any design specification.

Fretting corrosion represents the primary risk for any slip-fit application. Because the shaft is slightly smaller than the bore, micro-movements occur during operation. This continuous microscopic rubbing strips away protective oxides. It generates a fine, reddish-brown iron oxide powder. Over time, this fretting action can physically weld the inner ring to the shaft. Alternatively, it can wear the shaft severely undersize, causing catastrophic rotational imbalance.

Speed constraints also limit their broad application. Direct shaft locking mechanisms cannot guarantee perfect concentricity. Tightening set screws or engaging an eccentric collar pushes the inner ring slightly off-center. This induced runout limits maximum operating speeds. Concentrically mounted standard configurations handle high RPMs effortlessly. Slip-fit equivalents will vibrate excessively if pushed to identical rotational velocities.

Finally, heavy vibration threatens locking integrity. Continuous shock loads can cause set screws to back out gradually. Vibration can also trick eccentric collars into losing their directional grip. You must implement robust mitigation strategies. Common best practices include filing flats onto the shaft, drilling shallow dimples for set screws, or applying high-strength thread-locking compounds.

Comparison Chart: Implementation Risks and Performance Limits

The Decision Framework: Shortlisting Logic

Selecting the optimal configuration requires a structured approach. You must weigh installation convenience against mechanical longevity. Follow this specific decision framework to shortlist the correct component for your application.

1. Criteria 1: Assess Shaft Machining Capability. First, evaluate your facility's machining resources. If precision machining is cost-prohibitive, lean toward the extended inner ring. Furthermore, if field replacements occur in remote locations demanding rapid slip-fit installation, the extended design is the definitive choice.

2. Criteria 2: Evaluate Speed and Balance Ratings. Next, check the required RPM against the catalog limits. If your application operates near the upper threshold of the stated speed rating, avoid slip-fit designs. You must default to standard bearings utilizing adapter sleeves. This ensures the perfect concentricity required for high-speed dynamic balance.

3. Criteria 3: Analyze Load Reversal Patterns. Determine the rotational direction of your equipment. If loads remain strictly unidirectional, consider eccentric locking collars for a secure, non-marring grip. However, for reversing loads or heavy stop-start operations, you must require set screw designs. Alternative concentric locking mechanisms (like taper-lock styles) are also viable here.

4. Criteria 4: Review Environmental Contamination. Finally, audit the operating environment. If your equipment operates in severe dirt, mud, or dust, standard bearings may fail prematurely. You should evaluate the advanced sealing arrangements uniquely enabled by the extended ring geometry. The additional sealing land drastically improves survival rates in harsh conditions.

Conclusion

Extended inner ring spherical roller bearings bridge a crucial gap in industrial engineering. They deliver heavy-duty load capacity while retaining maintenance-friendly installation characteristics. By eliminating complex adapter sleeves and rigid interference fits, they empower maintenance teams to reduce costly downtime. However, this convenience requires careful attention to speed limits, locking mechanisms, and shaft tolerances.

To implement these components successfully, take immediate action on your current designs. First, consult the manufacturer's load and speed charts to ensure your application falls within safe operational limits. Second, verify your specific shaft tolerance grades. Ensure your TG&P shafting meets the required h9 or h10 specifications. Finally, review your chosen locking mechanisms with your trusted distributor or engineering support team. Validating these details guarantees a reliable, long-lasting installation.

FAQ

Q: What is the difference between a standard and an extended inner ring spherical roller bearing?

A: Standard bearings require press fits or adapter sleeves for mounting. Extended inner rings protrude beyond the outer ring to house locking mechanisms for direct slip-fit mounting on commercial shafting. This design eliminates complex installation tools and reduces overall maintenance downtime.

Q: Can I use an extended inner ring bearing in high-speed applications?

A: Typically no. The set screw or eccentric collar locking methods can induce slight shaft runout and imbalance. This lack of perfect concentricity makes them better suited for low to moderate speed ranges compared to standard interference-fit models.

Q: How do I prevent the bearing from damaging the shaft?

A: Ensure correct tightening torque on set screws at all times. Consider filing flats or dimpling the shaft for the screws to seat into cleanly. Alternatively, opt for concentric locking mechanisms or eccentric collars if shaft preservation remains highly critical.

Q: Are these bearings suitable for reversing loads?

A: Bearings with set screws can handle reversing loads if properly torqued and maintained. However, eccentric locking collars should generally be avoided for reversing applications, as they can unlock rapidly when rotational direction changes.
